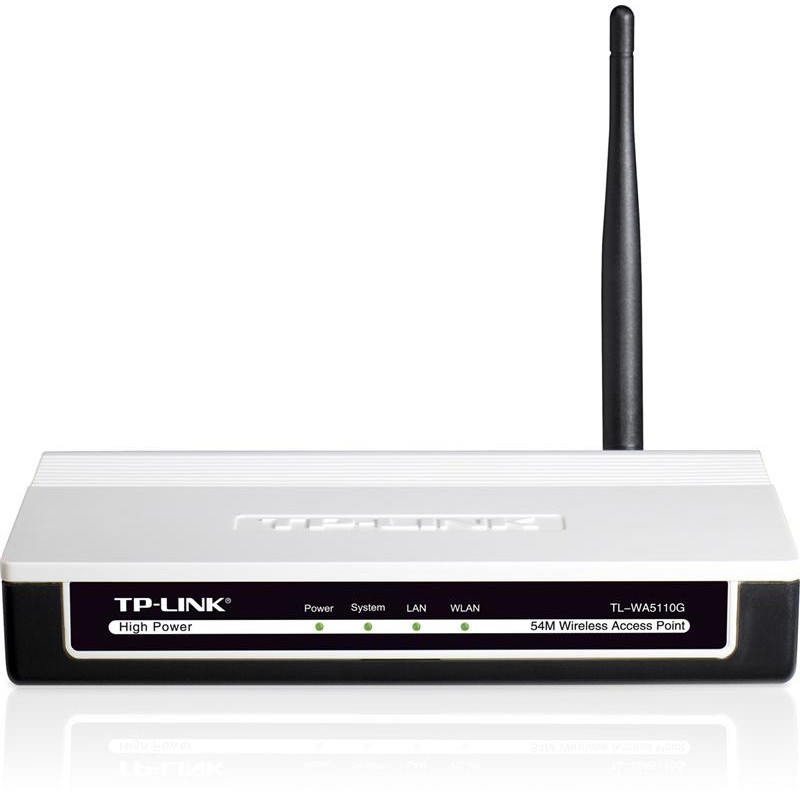

The TL-WA5110G High Power Wireless Access Point is dedicated to Small Office/Home Office (SOHO) and long distance wireless network solutions. It integrates the functions of a Wireless Access Point, WISP Client, Firewall, and Router.

Long Distance Wireless Connectivity

The High Power Wireless Access Point features high output power and high RX sensitivity can significantly extend the transmission range to reduce dead spots and to deliver a more stable wireless connection. Also supports distance control from 0km to 52.6km, which breaks through distance limitations in normal 802.11g devices, enables ultra-long distance wireless transmission.

• High Power design to boost your signal coverage and link speed

• Passive Power over Ethernet for flexible deployment

• Long distance wireless supported, up to 50km

• WISP Mode supported

Features:

• Supports AP Client Router, AP Router and AP operation mode
• High output transmission power and reception sensitivity optimized
• Supports WISP Mode (PPPoE client on wireless interface)
• Supports Passive Power over Ethernet
• Supports Wireless Distribution System (WDS)
• Distance Adjustment for long range transmission
• Supports Antenna Alignment Supports Layer 2 User Isolation
• Provides throughput monitor indicating the current wireless throughput
• Supports Ping Watch Dog
• Supports Link Speed Test
• Supports Remote Management
• Supports PPPoE, Dynamic IP, Static IP Internet Access
• Built-in NAT and DHCP server supporting Address Reservation
• Supports UPnP, Dynamic DNS, Static Routing, VPN Pass-through
• Provides 64/128/152-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK data security and TKIP/AES encryption WLAN ACL (Access Control List)
• Supports configuration backup/restore and firmware upgrades
• Wall mounted available, also can be placed horizontally on a table or desk

Standards

• IEEE 802.11g, IEEE 802.11b
• Wireless Signal Rates With Automatic Fallback,
• 11g: Up to 54Mbps(dynamic)
• 11b: Up to 11Mbps(dynamic)
• Frequency Range, 2.4-2.4835GHz
• Wireless Transmit Power (MAX)

Modulation Technology

• IEEE 802.11b: DQPSK, DBPSK, DSSS, and CCK
• IEEE 802.11g: BPSK, QPSK, 16QAM, 64QAM, OFDM

Receiver Sensitivity

• 802.11g
• 54M: -74dBm
• 48M: -76dBm
• 36M: -81dBm
• 12M: -89dBm
• 9M:-91dBm
• 802.11b
• 11M:-90dBm
• 5.5M:-92dBm
• 1M:-94dBm

Wireless Mode

• AP Router Mode
• AP Client Router Mode (WISP Clent)
• AP/Client/WDS Bridge/Repeater mode

Wireless Range

• 50km (High gain directional antenna required)

Wireless Security

• SSID Enable/Disable
• MAC Address Filter
• 64/128/152-bit WEP Encryption
• WPA/WPA2/WPA-PSK/WPA2-PSK (AES/TKIP) Encryption

Interface

• One 10/100M Ethernet Port(RJ45)
• Support Passive PoE

Antenna

• 4dBi Detachable Omni Directional Antenna
• (Reverse SMA Connector)

Power Supply Unit

• Input: Localized to Country of Sale
• Output: 12VDC / 1.0A Switching PSU
• Operating Temperature, -10C~40C (14F~104F)
• Storage Temperature, -40C~70C(-40F~158F)
• Relative Humidity, 10% ~ 90%, Non Condensation
• Storage Humidity, 5%~95% Non-Condensing

Dimensions

• 6.5x4.2x1.1 in. (165x108x28mm)
